Manuel de l'utilisateur pour MaxiSYS MS908 (PDF)


Manuel de l'utilisateur pour MaxiSYS MS906TS (PDF)

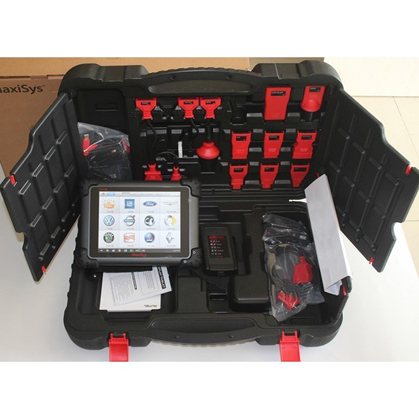

MS 908
Operating System Android™ 4.4.2, KitKat
Processor Samsung Exynos 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)
Memory 2 GB RAM & 32 GB ROM
Display 8.0" LED capacitive touch screen with 1024x768P resolution
Connectivity Wi-Fi (802.11 b/g/n), DB16 DLC, USB 2.0, SD Card (Support up to 32GB)
Camera (rear) Rear-facing, 8.0 Megapixel, AF with Flashlight
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output Microphone, Single Speaker
Power and Battery 3.7V/5000 mAh lithium-polymer battery, Charging via 12 V AC/DC power supply
Input Voltage DC/12 V (9-35 V)
Power Consumption 5 W
Operating Temperature -10 to 55°C (14 to 131°F)
Storage Temperature -20 to 70°C (-4 to 158°F)
Housing Rubberized outer protection and rugged internal housing
Dimensions (W x H x D) 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0mm (1.4”)
Weight NW: 0.96 kg (2.12 lb.)






Maxisys MS908 datalogging


Maxidas MS906
